Corrugated Box Factory Conveyor System Installation

Nhãn hiệu :Newkuani

nguồn gốc sản phẩm :China

Thời gian giao hàng :20days

khả năng cung cấp :100sets/month

Main parameters:
Max capacity: 2000Kg.
Motor Brand: Boneng;
Bearing: FK.
Belt speed: max 15m/min, Schneider inverter.

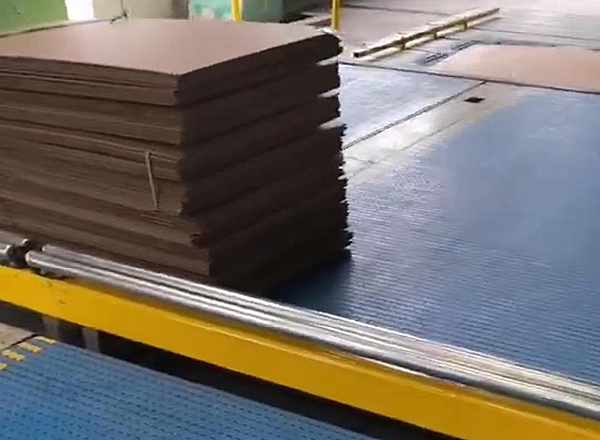

Real shot video of smart cardboard conveying system:



Module Plastic Belt Conveyor With Pusher

1) Main parameters:

l Max capacity: 2000Kg.

l Motor Brand: Boneng;

l Bearing: FK.

l Belt speed: max 15m/min, Schneider inverter.

2) Clip Paper Device: Air TAC Components

3) Plastic belt: consist of 2 lines, POM material, plastic thickness 12mm, maintain easy and simple, less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between plastic belt and supporting article.

4) Frame material: Using plate cold pressing molding, the surface electrostatic painting treatment.

5) Pallet Pusher: The cardboard is docked at the edge of the equipment. The pallet reaches B3 conveyor automatically. After all the operation is completed, the operator pushes ‘start’ button to complete the cardboard moving action onto the pallets. When completion, the mechanism will return to initial position itself.


cardboard conveyor installation
