Customized Automatic Cardboard Logistics System

Nhãn hiệu :Newkuani

nguồn gốc sản phẩm :China

Thời gian giao hàng :20days

khả năng cung cấp :100sets/month

3)Function:Mainly used for transferring the corrugated cardboard sheet, front and back body is equipped with fan shaped laser SICK, which can alarm within the scope of 5 meters to 3 meters, can reduce the speed in range of 3 meters to 1.5 meters, can park alarm within the scope of 1.5 meters, as well as mechanical device crash barriers; this transfer car can run by manual.

Smart cardboard transportation system video:

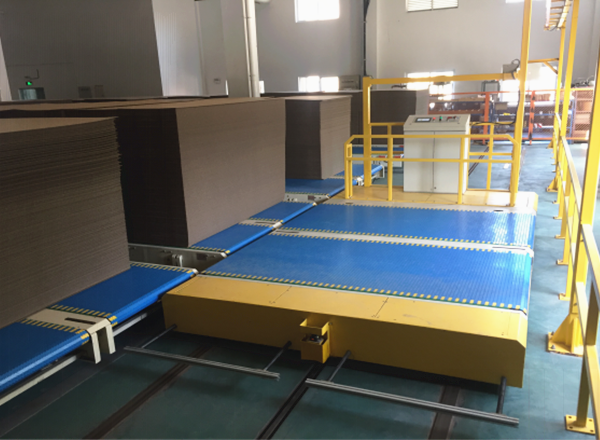

Module plastic belt transfer car:

1) Main parameters:

l Two stations, Max capacity:3000KG ;

l Motor Power:plastic belt:1.5Kw*2; car body:7.5Kw ;Bearing : FK;

l Belt speed:Max30m/min, Schneider inverter;

l Car speed:MAX120m/min;encapsulated wheels, Schneider inverter;

2) Plastic belt:POM material,  plastic thickness 12mm,modules type,maintain easy and simple、less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between  plastic belt and supporting article.

3) Function:Mainly used for transferring the corrugated cardboard sheet, front and back body is equipped with fan shaped laser SICK, which can alarm within the scope of 5 meters to 3 meters, can reduce the speed in range of 3 meters to 1.5 meters, can park alarm within  the scope of 1.5 meters, as well as mechanical device crash barriers; this transfer car can run by manual.

4) Outline example:


Carton factory logistics system
